Terms such as civil war or internal conflict are often used to describe the war in Eastern Ukraine. However, the available evidence no longer supports this view. During summer 2014, Ukrainian officials and also the U.S. government were already publicly stating that the Russian military were active in the war. A number of subsequent reports have corroborated these claims, documenting the presence and death of Russian servicemen in Eastern Ukraine, as well as the existence of Russian military equipment inside Ukraine.
In this report, an under-reported aspect of Russian military involvement in the conflict is fully investigated: artillery attacks against Ukraine in summer 2014. In previous reports such attacks were proven to have occurred on several occasions, but these reports could not fully describe the real extent of these attacks. Using open source evidence, this report attempts to document the full scale of the Russian artillery attacks against Ukraine in summer 2014.
Building on the preceding reports, the intention of this report is to document the full scale of Russian artillery attacks against Ukrainian forces in summer 2014. The entire border region in the conflict area was searched for potential firing positions or artillery target sites. In total, hundreds of relevant locations were identified. The main findings can be summarized as follows:
We surveyed the area inside Ukraine within 22 km of the Ukrainian-Russian border in the Donets’k region, and the Luhans’k region border as far as Nyzhnya Vil’khova. Inside Russia, the entire area of the Rostov region adjacent to the search area in Ukraine was surveyed. The search for attack sites or firing positions was done manually, primarily using Google Earth, and repeated for the different satellite imagery dates. Within the search area, 2254 potential relevant sites were identified and considered. 518 of the identified features are artillery crater attacks sites inside Ukraine, while 305 were classified as potential firing positions in Russia or close to the border inside Ukraine. Note that the 305 potential positions describe the number of potential strikes from the positions.

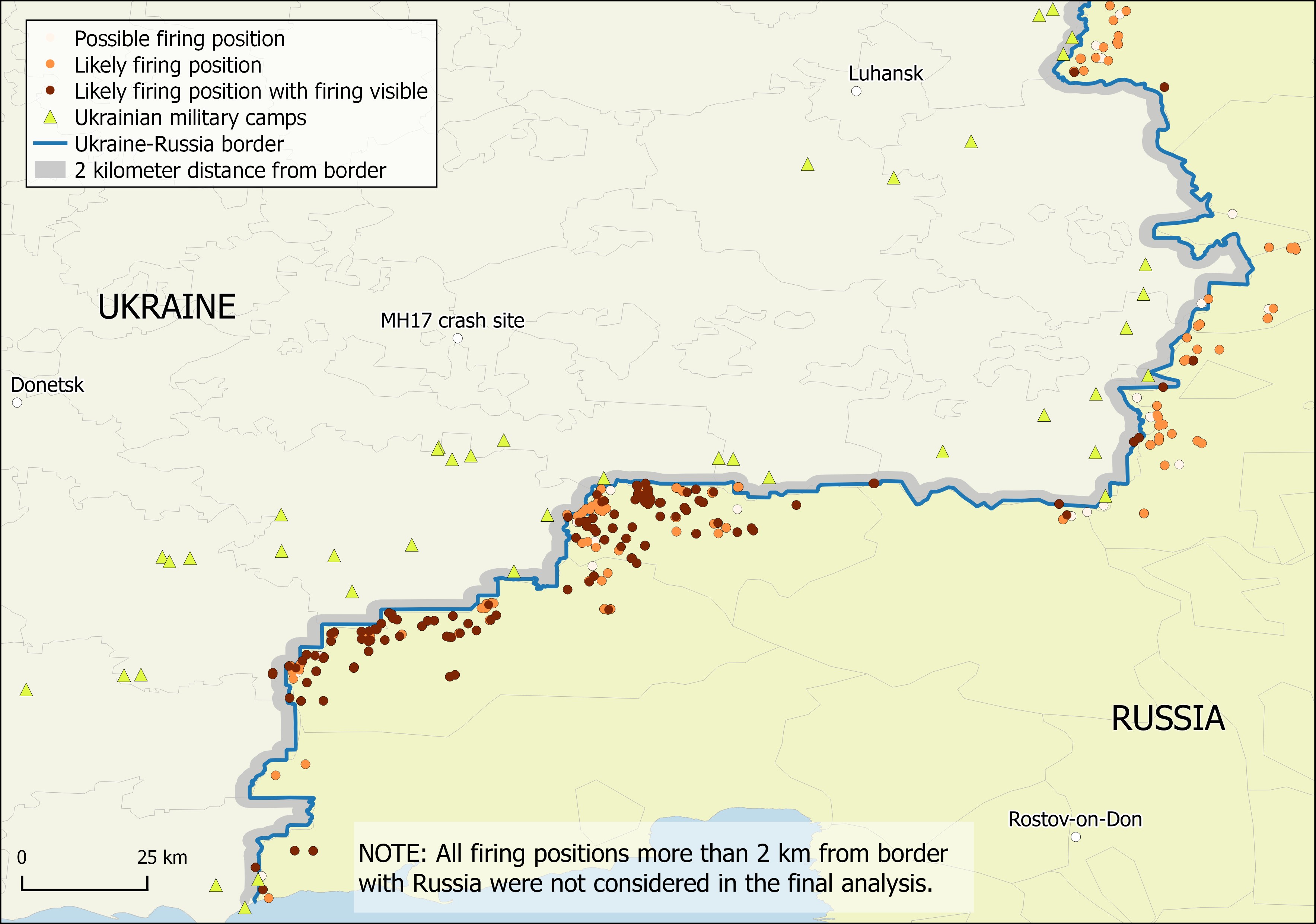

Each potential firing position was classified by two analysts; if there was no agreement between the two analysts, a third opinion was obtained. Only if two analysts agreed on the classification, a site is considered as a ‘likely’ firing position. 279 out of the identified 305 potential positions were classified as likely firing positions. Likely firing positions were evaluated according to the likely type of artillery used, facing direction, date of appearance in satellite imagery, and number of visible marks. If visible marks strongly implied outgoing fire, the positions is classified correspondingly. For each position, an ‘aiming trajectory’ was also estimated.

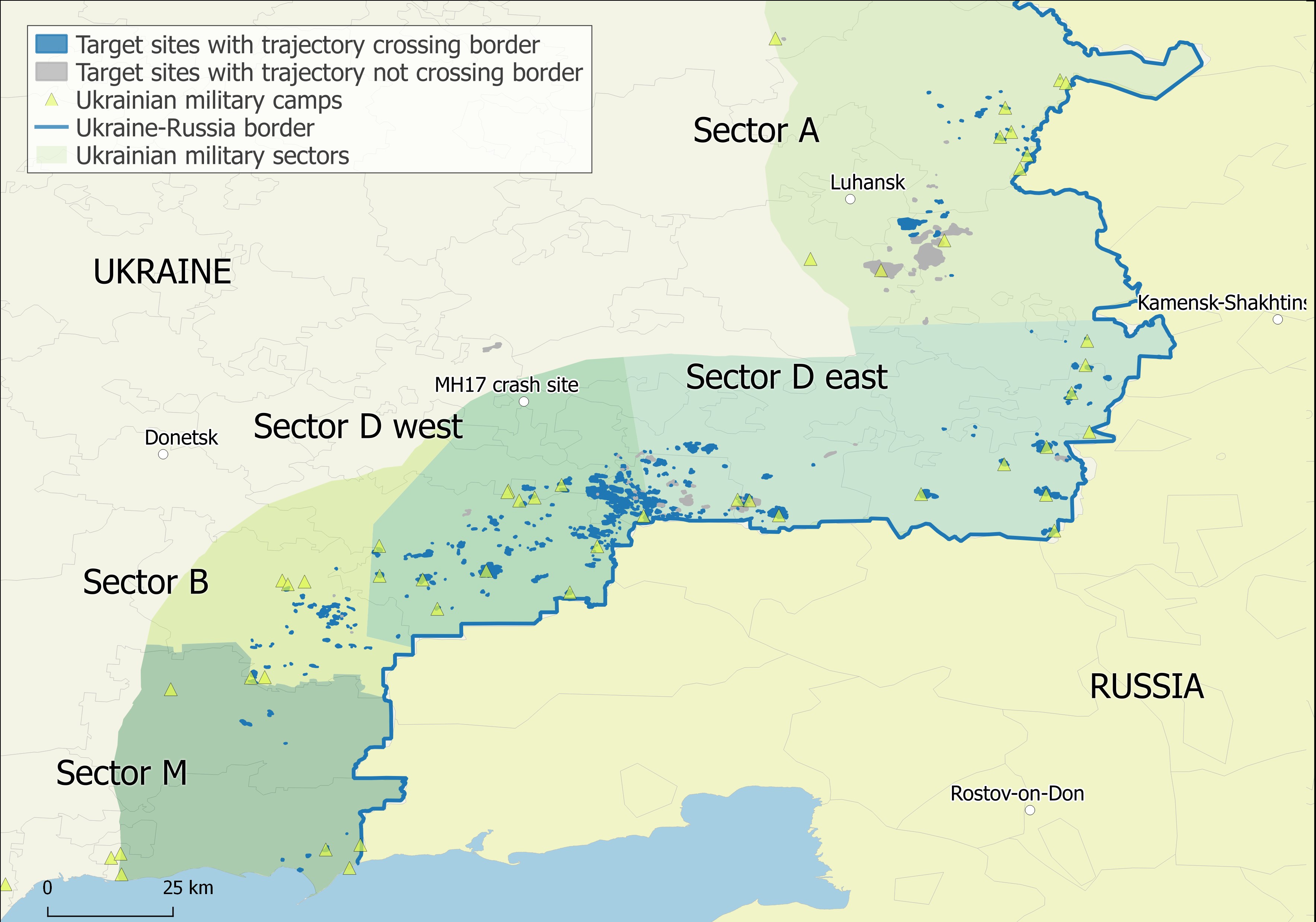

Attack sites within Ukraine were evaluated in terms of size of attack (small: 10 or less visible craters, medium: 10 to 100, and large: >100), date of appearance on satellite imagery, and trajectory. The trajectory was evaluated using a technique based on US military analysis and was similar to that used in previous Bellingcat reports, a scientific report, and as evidence in the court trial of Nadiya Savchenko. Due to time constraints, it was impossible to fully evaluate the trajectories of each-one of the many thousands of artillery craters across the 518 attack sites. Therefore, in order to determine a general trajectory bearing in this report, five craters were selected from each attack site, and the trajectory was evaluated based on this sub-sample.
Furthermore, we attempted to determine which of the attack sites in Ukraine were linked to specific artillery firing positions in Russia. First, we determined the facing direction of the firing positions as described earlier in this section. Second, we determined the trajectory of the attacks. To account for the uncertainty in trajectory, the bearing derived was converted into a cone buffer with a bearing variation of 6° on each side The attack site and firing position trajectories were than intersected over markers indicating the centroid of the attack site and the firing position. Only attack sites that were ‘double-matched’ were retained.[... map 2 ...]
The region with the highest density of likely firing positions is the area around Kuybyshevo, Russia. On the other side of the border (inside Ukraine), the area around the strategic important height Savur-Mohyla and the Marynivka-Kuybyshevo border crossing was contested in July and also August 2014. In July, the supply route for the forward Ukrainian army units based the border area led through this contested area. The Marynivka-Kuybyshevo border crossing was captured by the ‘separatists’ on 14.08.2014.
There is evidence suggesting that some cross-border attacks had already occurred in this area before 17.07.2014. It is also possible to identify some likely firing positions in Russia or inside Ukraine less than 2 km from the border in the available 16.07.2014 satellite imagery. Between 16.07.2014 and 26.07.2014, new likely firing positions, mainly identified as field or self-propelled howitzer positions, become visible inside Russia on satellite imagery. However, it was also possible to identify MLRS blast marks in the area already on 20.07.2014. After 26.07.2014, the satellite imagery coverage of the entire area is less complete. Nevertheless, the many visible firing positions visible on the imagery available to us, shows that the vicinity of Kuybyshevo was used as one of the primary staging areas for cross-border artillery attacks in the summer 2014 conflict.[... map 3 ...]

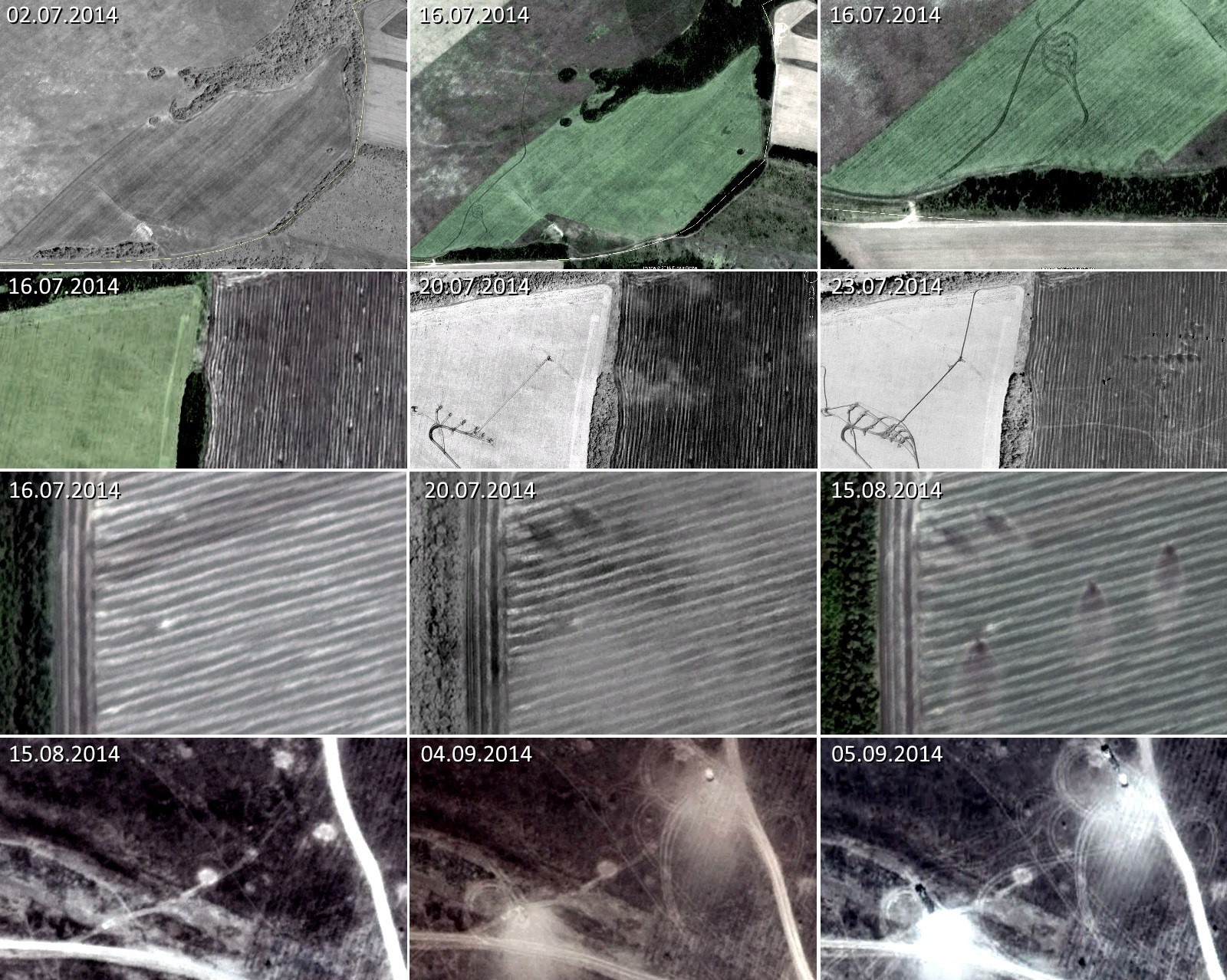

The figure above presents four selected areas with likely firing positions in the Kuybyshevo area. The imagery in the first row shows two early likely firing positions, visible for the first time on the 16.07.2014 satellite imagery. One of them is located inside Ukraine, one is inside Russia, but both do not show signs of outgoing fire. The imagery in the last column shows the likely firing position inside Ukraine and the path that the vehicles likely used to cross the border, which is not visible in 02.07.2014 imagery, in this area. A third likely position inside Ukraine is at the end of the visible path leading further to the north.
The second row shows an area with at least three likely firing positions. The 23.07.2014 satellite imagery was presented in summer 2014 by the NATO Supreme Headquarters Allied Powers Europe as evidence for Russian cross-border attacks. Already, on the 20.07.2014 imagery, six self-propelled howitzers are visible in firing position in this area. In the 23.07.2014 imagery, again six self-propelled howitzers are visible. However, also two crossing lines with marks indicating outgoing fire are visible just south of the howitzers.
The third row shows an area which was used twice as a firing position for MLRS attacks against Ukraine. The first attack, leaving two distinct blast marks, occurred between 16.07.2014 and 20.07.2014. The blast marks indicate outgoing fire in north-westerly direction. On 15.08.2014, three new blast marks are visible in the same area. The attack firing towards the north must have been occurred between 02.08.2014 and 15.08.2014.
The last row shows another location with blast marks indicating outgoing MLRS fire. No such marks are visible on 15.08.2014. In the 04.09.2014 satellite imagery, two large blast marks are clearly visible in the area. Additionally, the 05.09.2014 imagery shows two vehicles in position. Because of their length of approximately 12 m, it can be assessed that the visible vehicles are likely BM-30 Smerch MLRS launchers.

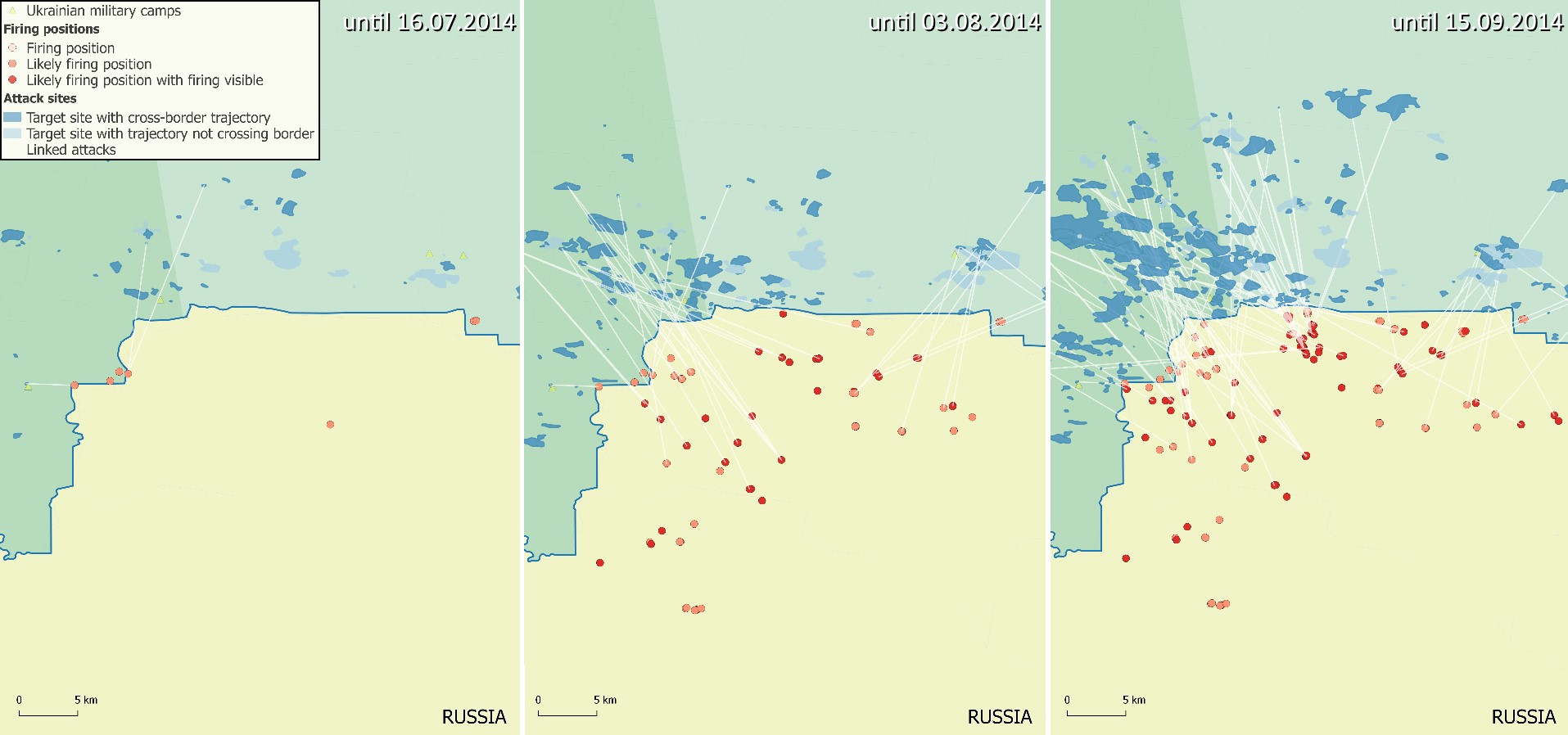

In total, more than one hundred likely firing positions could be identified in the area around Kuybyshevo The map below shows the development over time. On the left, only likely firing positions which were visible before 17.07.2014 are considered, in the middle, all likely firing positions visible in the available satellite imagery until 03.08.2014 are presented. Note that for large parts of the area east of Ivanovo-Yasinovka no further imagery after 26.07.2014 is available for this period (until 03.08.2014). The right map shows all identified firing positions in the area in the summer of 2014.[... map 4 ...]
The left image showing the early situation (before the downing of MH17) reveals that only a limited number of firing positions could have been identified in the satellite imagery. However, there are already a number of artillery target sites inside Ukraine in proximity of the likely Ukrainian camp near the Marynivka-Kuybyshevo border crossing with trajectories pointing towards the Ukrainian-Russian border. This suggests that a number of cross-border artillery attacks occurred in this period.
Around two weeks later (by the end of 02 August), a larger number of additional likely firing positions, with and without signs of outgoing fire, are visible. Furthermore, it can be noted that the number of artillery target sites inside Ukraine has been considerably increased. Between the new firing positions and attacks sites a number of potential links could be established (discussed further in the full report).
The final map showing the situation at the end of the summer 2014 reveals that further attacks were launched from this area in August and September 2014. A number of new likely firing positions and attacks sites are visible in the satellite imagery. Compared with the situation in early August, a number of these new firing positions are located closer to the Russian-Ukrainian border, and also some of these attacks sites are much deeper inside Ukraine..
The preceding extract was just a small part of the full report, which you can download here.[... internal pdf ...]
